ST204M-C10

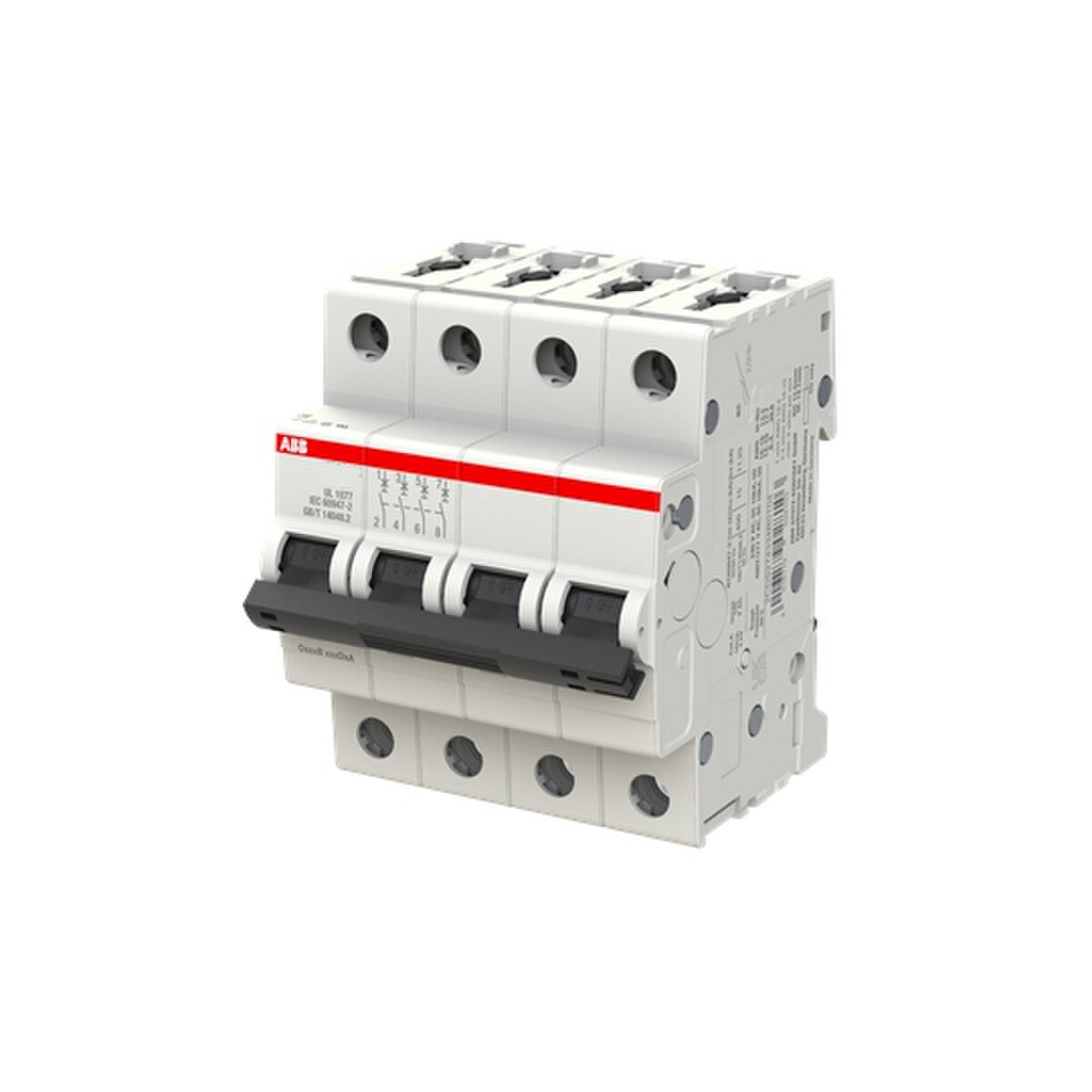

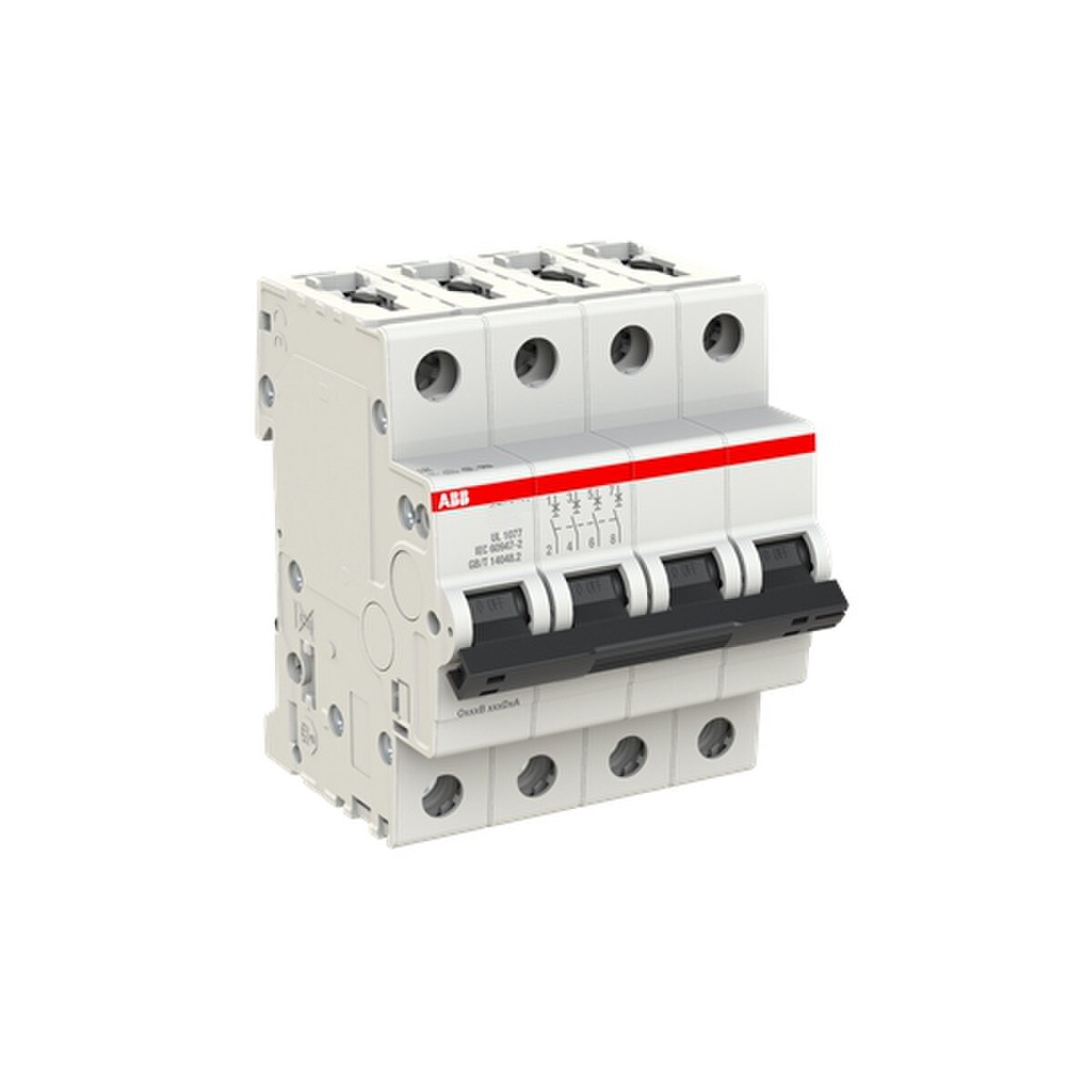

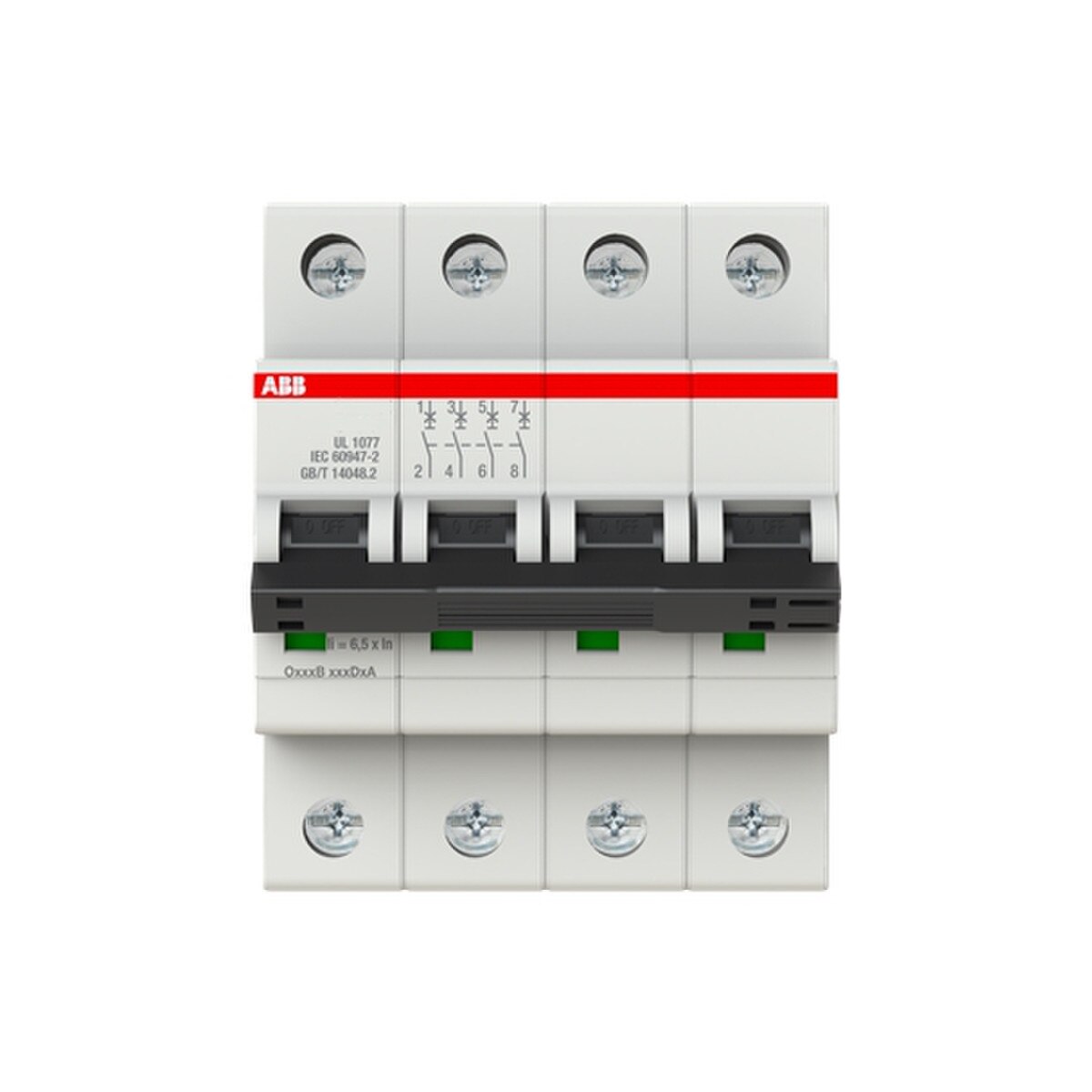

The ST 200 M miniature circuit breaker provides supplementary protection acc. to UL 1077 up to 480Y/277 V AC and 125 V DC. With a broad range of options and approvals acc. to the international standards UL, CSA and IEC, the ST 200 M is ideal for multiple applications and markets. It is also fully compatible with System pro M compact® accessories. Features: • Interrupt rating up to 10kA • Certified For AC/DC use according to UL1077 and CSA 22.2 No. 235 • High calibration temp, 40°C for reduced derating in ICP applications • Short circuit current rating U2 enables continuous high level short protection • Laser printing permanently marks product details on device • Clear contact position indication red/green • Patented twin terminal for wiring up to 35mm2 w/ captive screws • Rugged thermoplastic housing
