CR460XP32

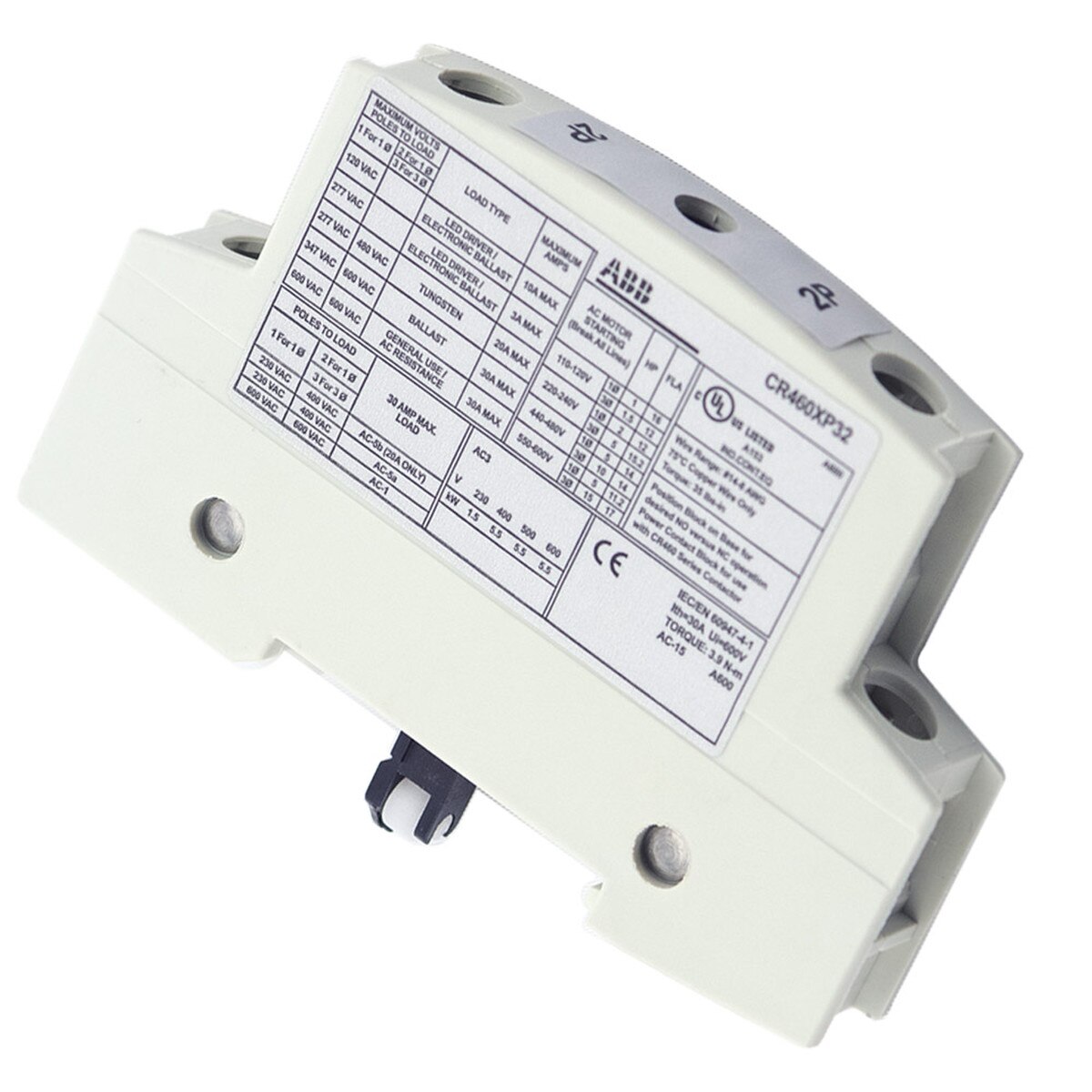

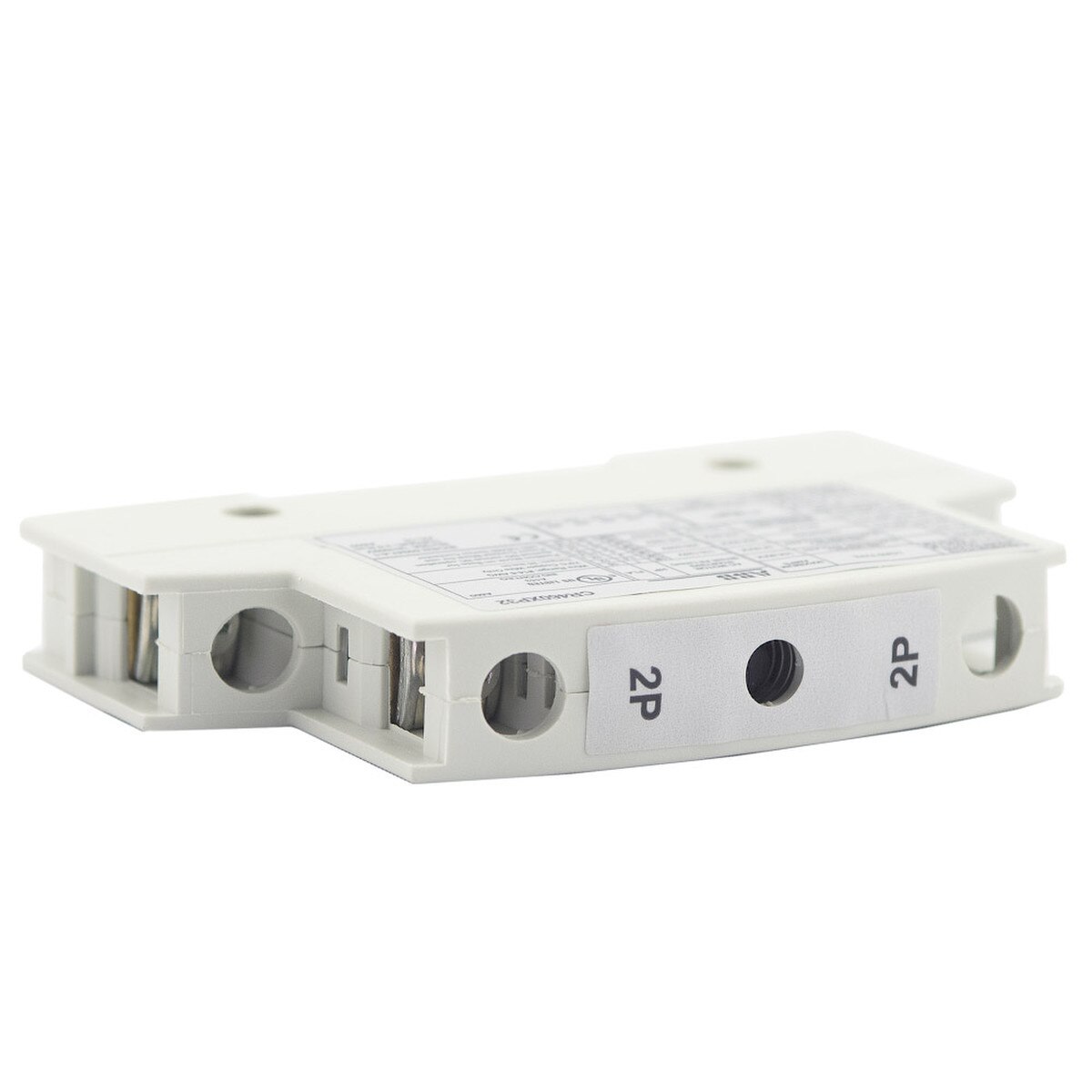

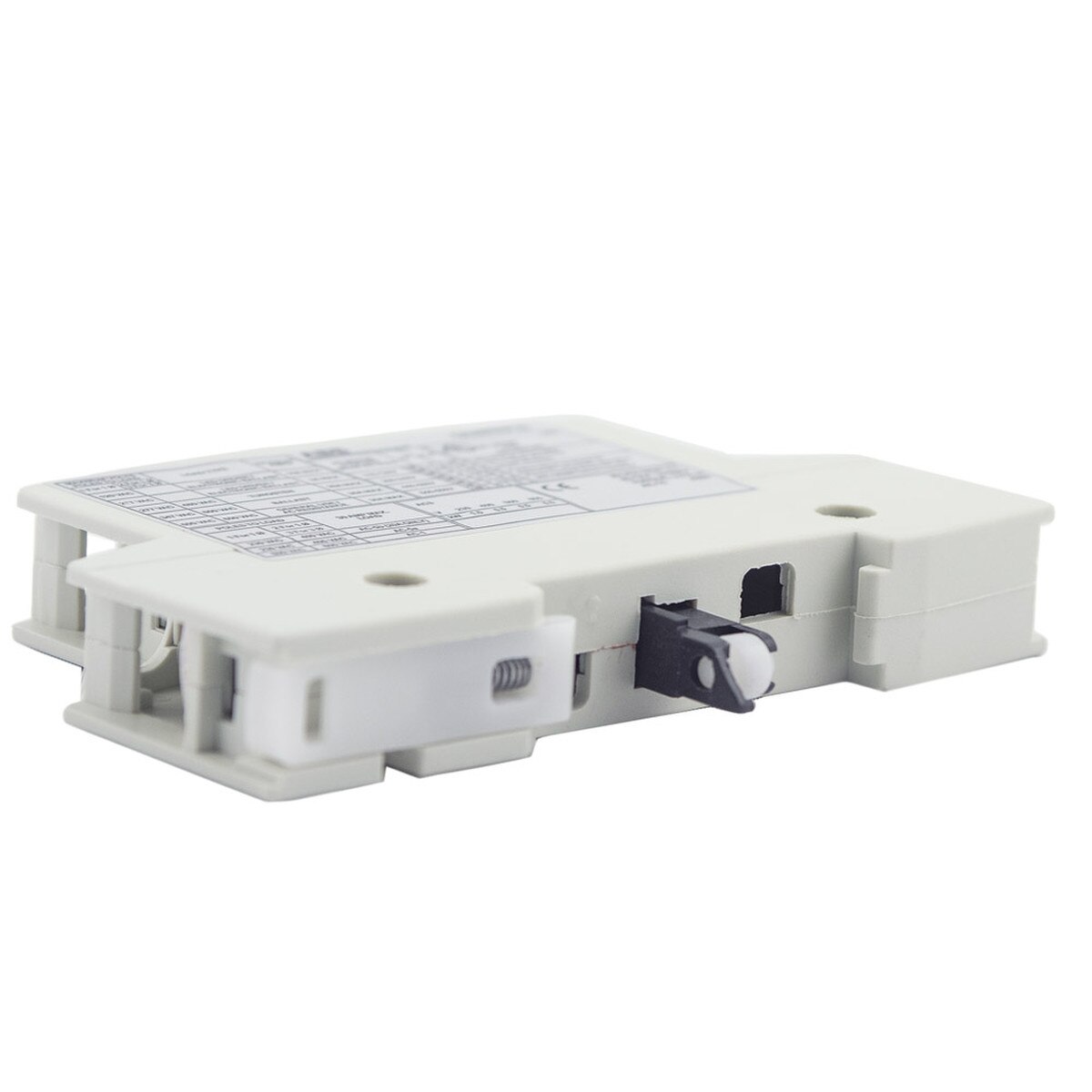

The ABB CR460XP31 and CR460XP32 are the modular power pole components used to build CR460/CR463 series lighting contactor base units. The CR460XP31 is a single power pole, and the CR460XP32 is a double power pole; up to six of these poles combine on a base unit to form any configuration from 2 to 12 poles total. All poles ship as normally open (NO) but can be field-converted to normally closed (NC) — and back again — simply by unlatching the pole, rotating it 180°, and reinstalling it, with no special tools required. Each pole is rated 30A and carries the same range of load ratings as the assembled contactor: 30A for ballast, general use, and AC resistive loads; 20A for tungsten; 15A motor rated; A600 pilot duty; and 3A @ 277VAC or 10A @ 120VAC for LED driver/electronic ballast loads.
