Series 185 Dome Signal Light

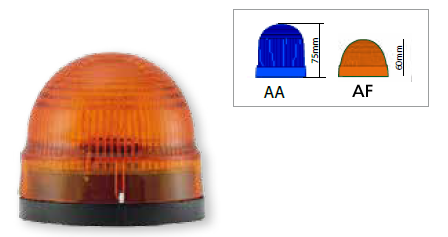

The Series 185 Dome Signal Light is a 60mm (2.4″) diameter dome lamp designed to be base or pole mounted.  The polycarbonate lenses are available in two heights; 2.4″ and 3″ in 6 different colors.  The IP65 rating makes it suitable for harsh environments and the ultra bright LED ensures good visibility even in direct sunlight.

  • Available Colors:  Red, Amber, Yellow, Green, Blue, White
  • Available Input Voltages:  24V AC/DC; 115VAC; 230VAC
  • Current Consumption:  40-45mA
  • IP65 rated
  • Certified for ambient temperatures from -20° to +50°C (-4° to +122°F)
  • Conforms to EN 60947.5.1; EN 60073; EN 60529; EN 60068-2-6; EN 60204.1; EN ISO 7731; EN981; IEC 536
