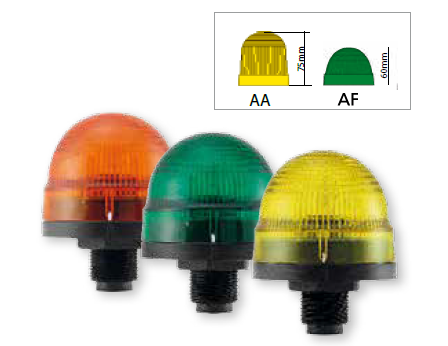

Series 183 Panel Mount Dome Lights

The Series 183 Panel Mount Dome Lights are 60mm (2.4″) diameter dome lights designed for panel mount.  These economical lights are available in six colors and two different dome heights (2.4″ & 2.75″)  The IP65 rating (NEMA 4X equivalent) makes it suitable for the most rugged environments and a variety of input voltages provide application flexibility.  The unit is designed to be installed in a standard 22mm hole in the panel, and features an anti-tampering block.

See also:

Multi-color dome lights


  • Available Colors:  Red, Amber, Yellow, Green, Blue, White
  • Available Input Voltages:  24V AC/DC; 115VAC; 230VAC
  • Current Consumption:  40-45mA
  • IP65 rated
  • Certified for ambient temperatures from -20° to +50°C (-4° to +122°F)
  • Conforms to EN 60947.5.1; EN 60073; EN 60529; EN 60068-2-6; EN 60204.1; EN ISO 7731; EN981; IEC 536
