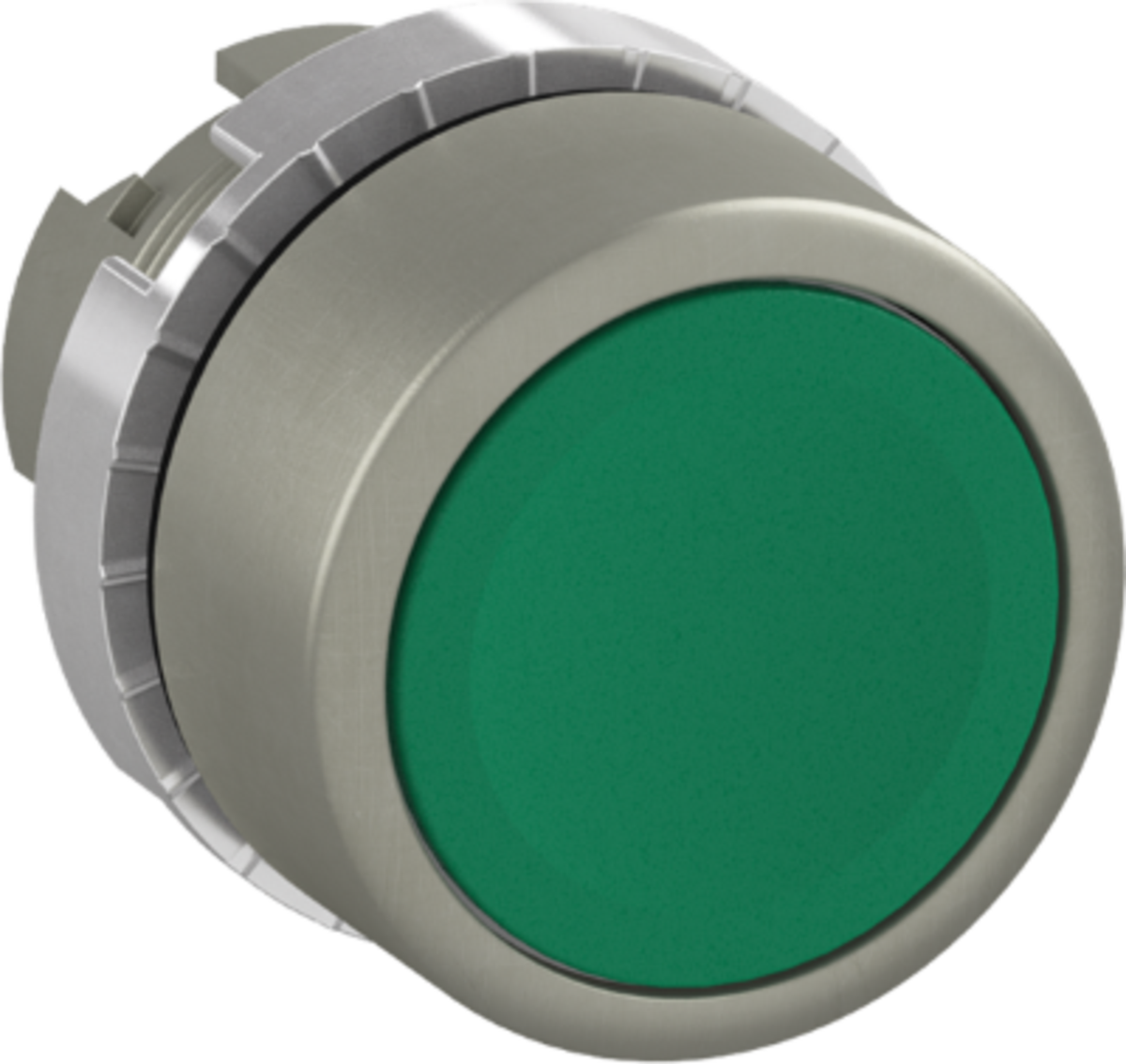

P9M-PNVG

The P9M series of 22mm pilot devices from ABB are a direct cross for the old P9C series from General Electric. The P9M operators can be fitted with the old GE contacts and vice versa. They are dimensionally and electrically identical. The only difference is the P9M has a matte, brushed finish as opposed to the P9C has a shiny chrome like finish, otherwise they are identical. Flush operators have the button and the bezel even with each other. Recessed buttons have the bezel sticking out farther than the button itself to help minimize accidental activation. Extended buttons have the button sticking out farther than the bezel making activation easier. Operators come standard with a contact holder than can hold up to 3 contacts. An optional 5 contact holder is available as well. Contacts are rated for up to 10A continuous up to 600VAC (2.5A for up to 300VDC).
