NT538-CU-LOW
Overview

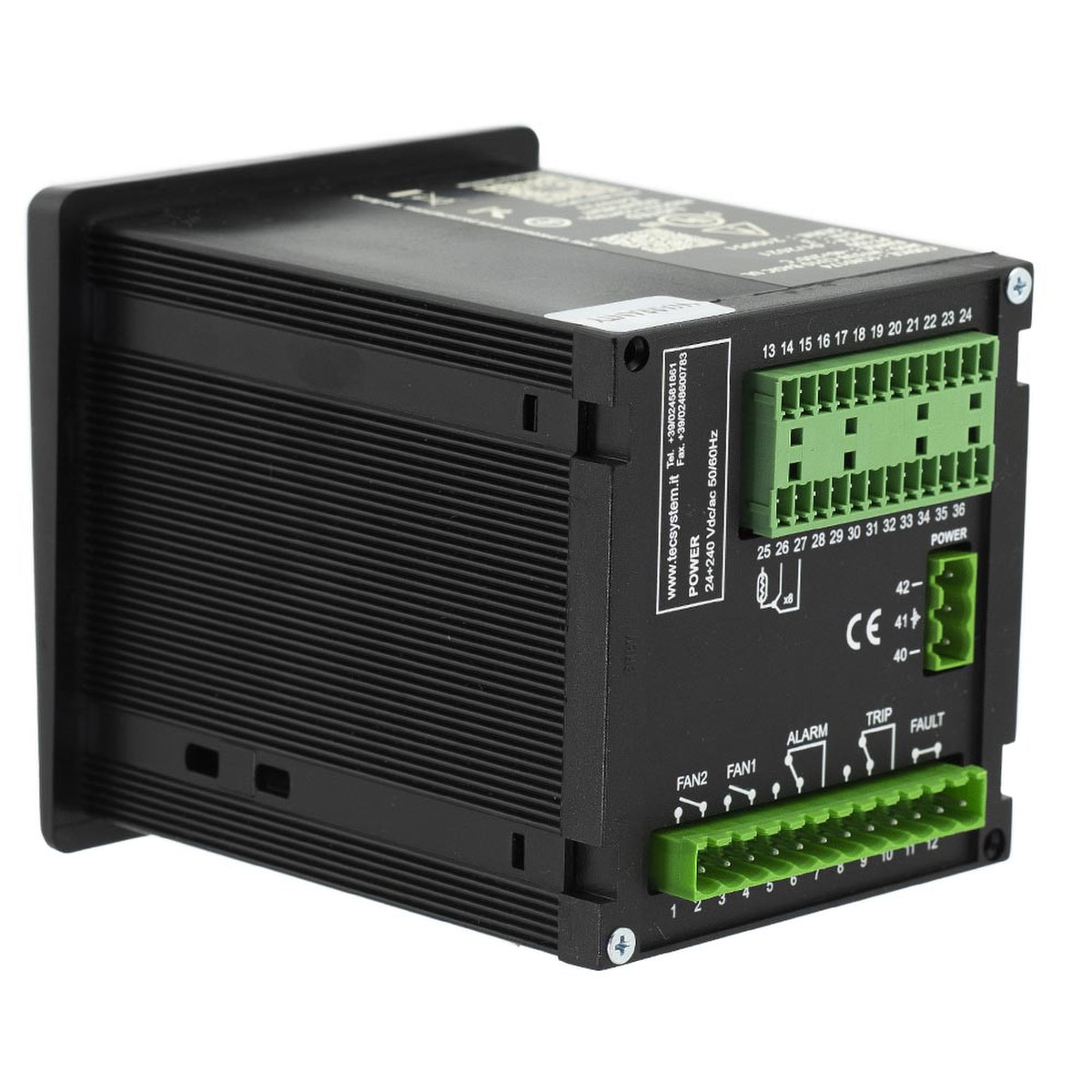

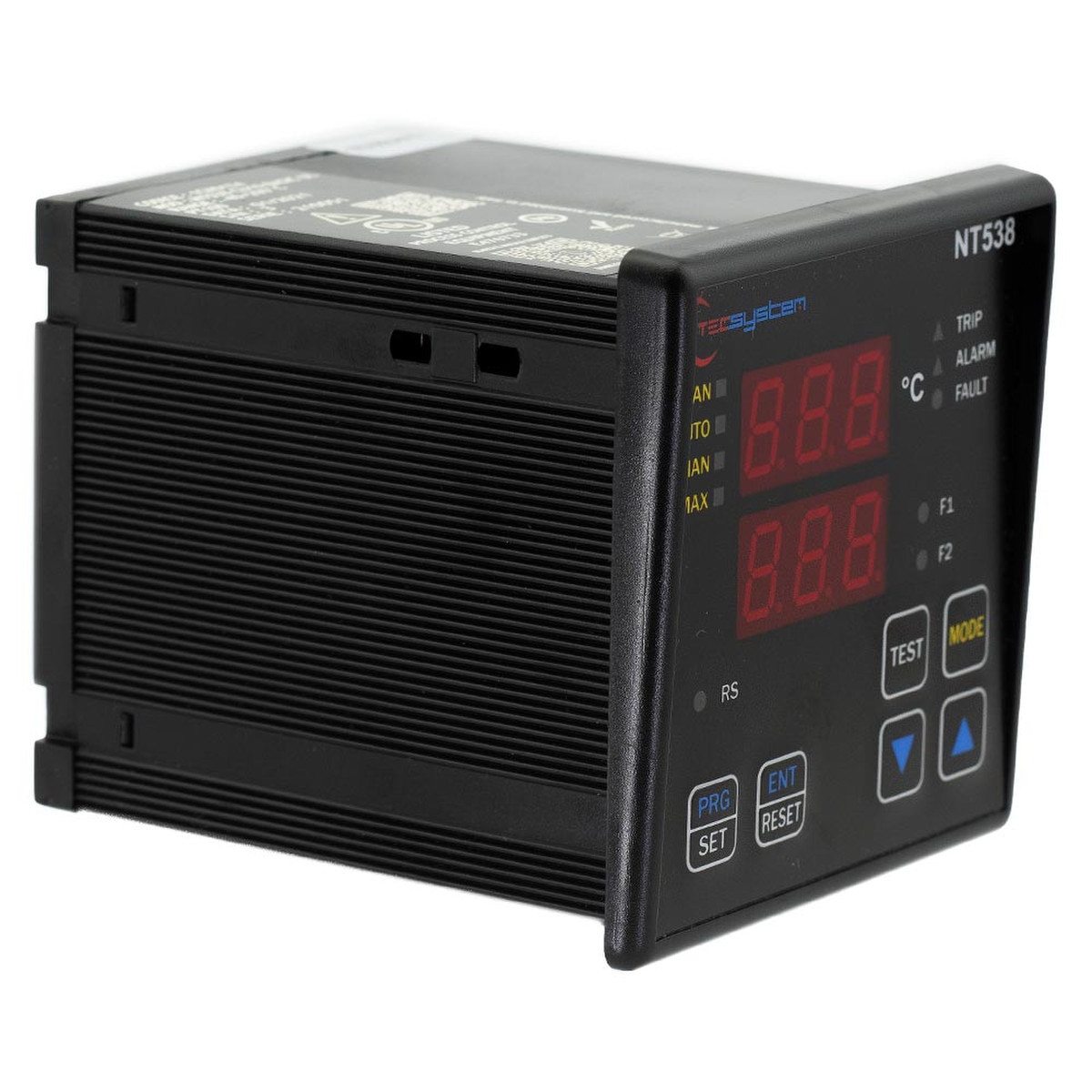

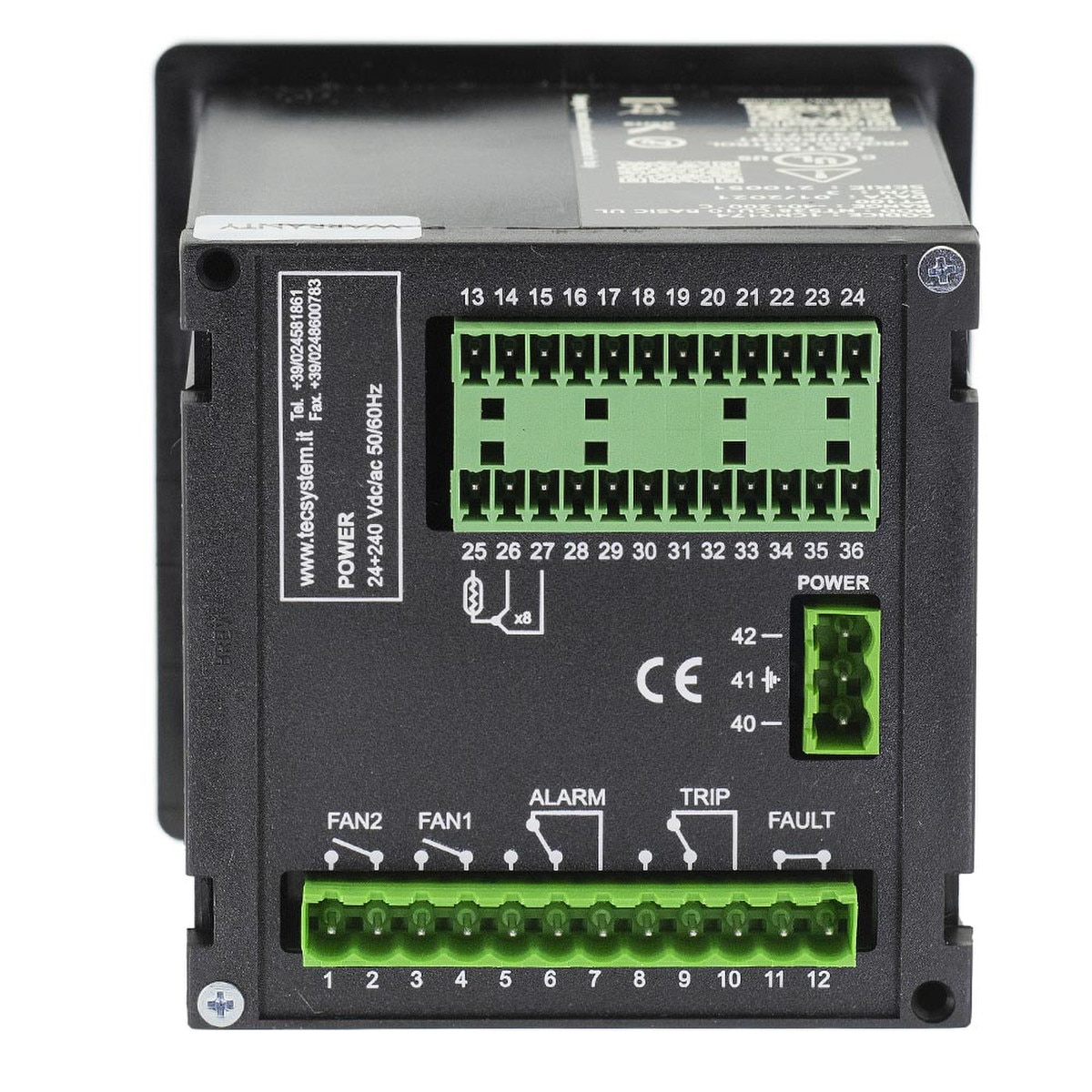

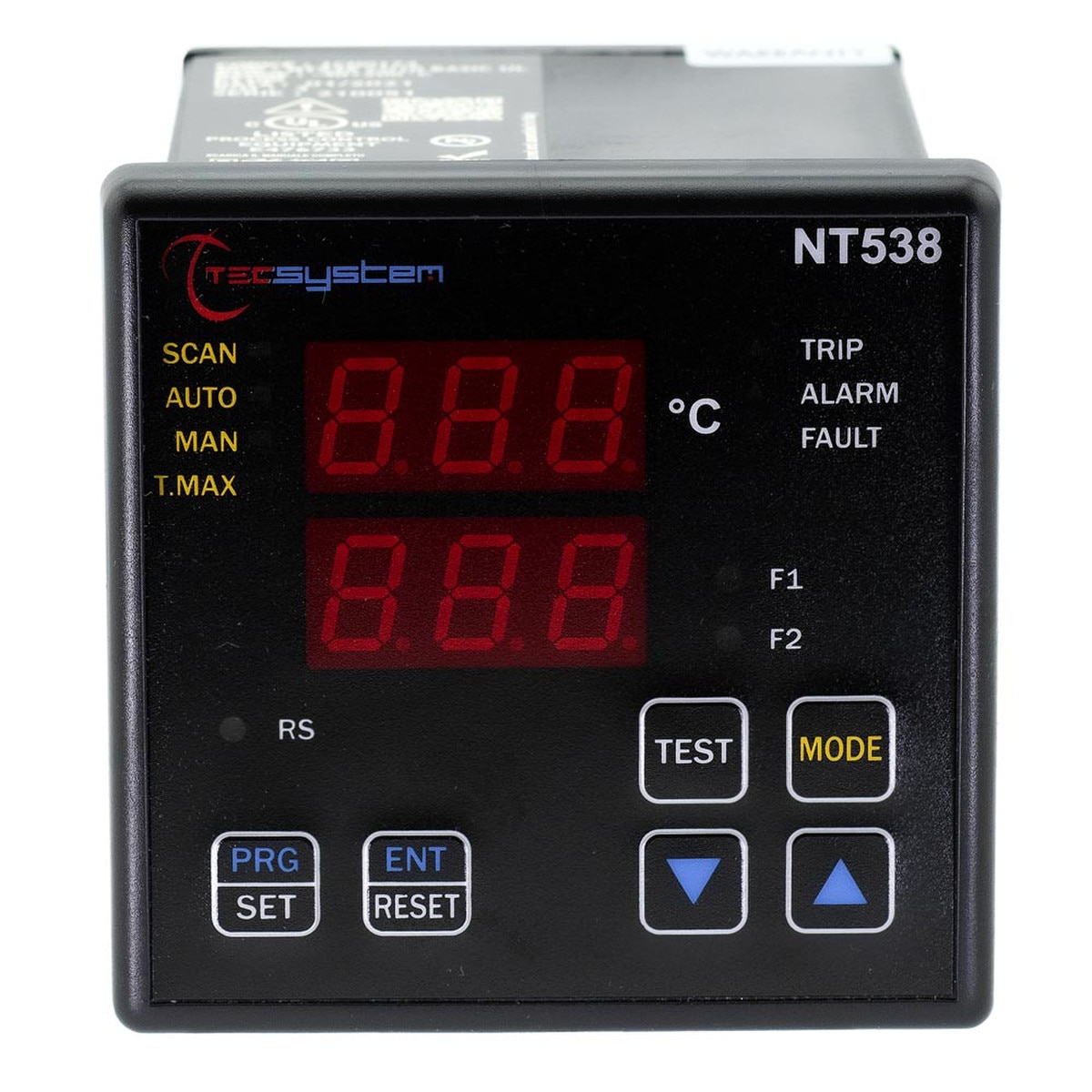

The NT538 is a microprocessor based temperature controller for motor drives with winding and bearing sensors. The NT538 has 8 input channels, allowing for monitoring temperature at up to 8 different locations. Featuring a dual display with 3 digits for displaying temperatures, messages and channels, along with 3 LEDs to display the state of the alarms of the selected channels and 2 LEDs to display the state of two separate fans. The CU-LOW version is designed for cold climates, monitoring lower temperatures, and inputs from 10 Ohm Cu RTD sensors
Features:
- Temperature monitoring from -40°C to 200°C (-40° – 392°F)
- 24-240VAC-DC input power
- VDC with reversible polarities
- Rated for use in ambient temperatures from -20° to +60°C (-4° to 140°F)
- 8 inputs from 10 Ohm Cu RTD sensor
- All potential free output relays rated for up to 10A @ 250VAC
- 2 alarm relays (Alarm & Trip)
- 2 alarm relays for fan control
- 1 alarm relay for sensor fault
